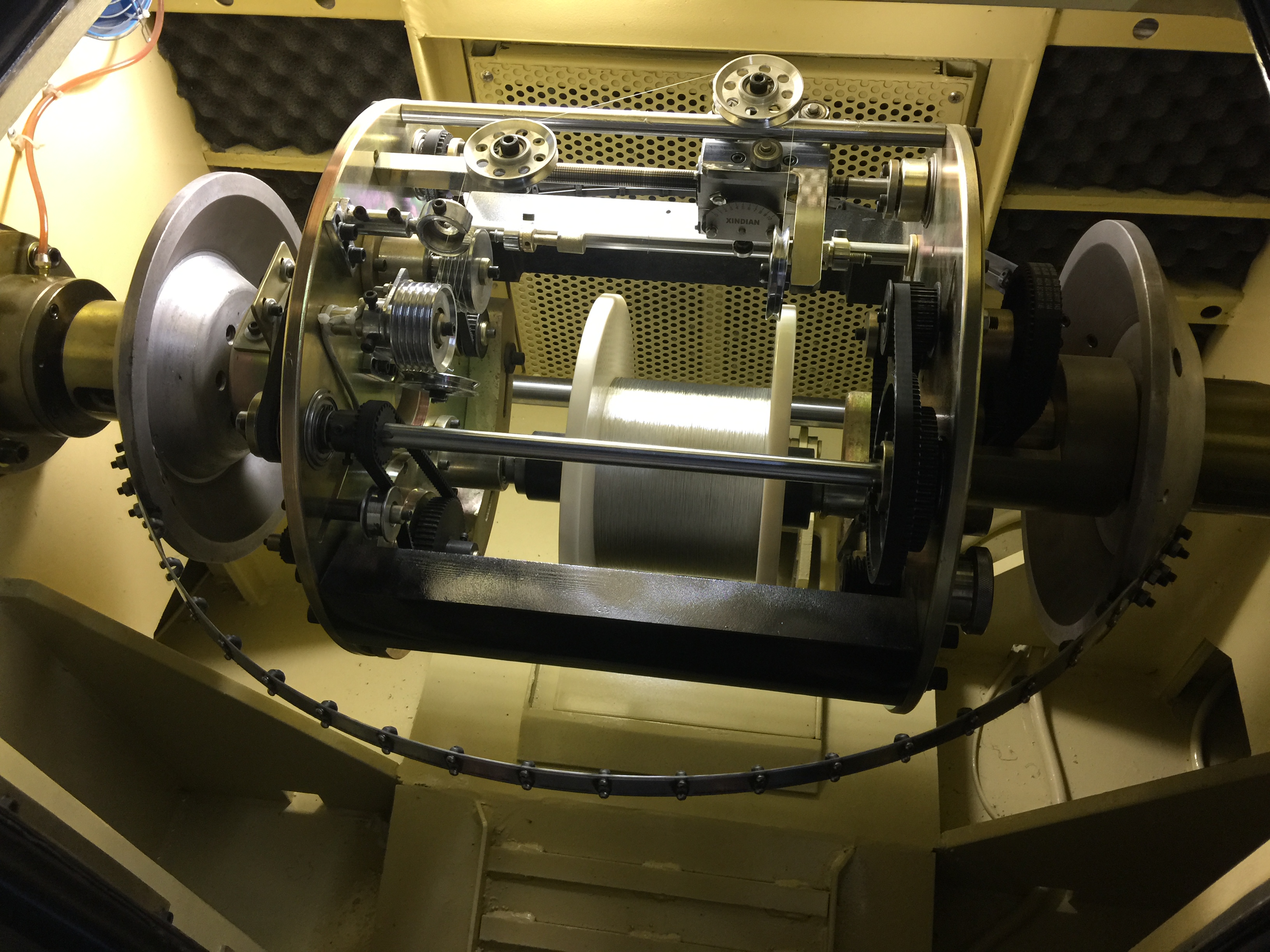

Bare Copper Wire Bunching Machine / Double Twist Cable Bunching Machine

Brand Name : Fuchuan

Model Number : FC-500B-3

Certification : CE

Place of Origin : China JiangSu

MOQ : 1set

Price : USD14333

Payment Terms : T/T

Supply Ability : 20SET/PER MONTH

Delivery Time : 45days

Packaging Details : normal packing

wire : core wire double twist

color : sky blue

magnetic powder clutch : 1.2kgf

fit for bobbin : Diameter 500/630/800/1000mm

for wire : bare copper wire/silver jacketed wire/enamelled wire

wire dia : 0.08-0.45mm

Contact Now

Bare Copper Wire Bunching Machine

Quick guide:

Japanese Technology ,Product in China

Apply for twisting aerospace, medical equipment, cellphone and ultra conductor(above seven pcs of bare copper wires, tinned wires, silver jacketed wires and enameled wires).

Characteristics:

It has been developed to produce very accurate strands with very small sections for the electronic industry. Simultaneously produce two different strand sections, on equal or different reels.One motor drive two shafts can be more environmental and power. With the main shaft meter counter, the machine twist the same types of line, and the tolerance is only 0.01%.

Patent No.:201320522156.7

Specifications:

Model FC-250D FC-300D FC-500D FC-650D
Twisting usage Apply for twisting aerospace, medical equipment, cellphone and ultra conductor(above seven pcs of bare copper wires, tinned wires, silver jacketed wires and enameled wires).
Single wire dia(mm) 0.03-0.18 0.05-0.28 0.08-0.45 0.15-1.04
Stranding section area (mm²) 0.0049-0.30 0.0137-0.45 0.05-2.0 0.35-6.0
Pitch(mm) 0.8-10.8(24zones) 1.6-21.6(24zones) 6.3-52.3(24zones) 11.6-100(34zones)
Direction of lay Free to right or left
Take up bobbin size(mm) 250*30*185 300*30*185

500*56*375

500*127*375

600*56*475

600*127*475
Max rotating speed 3500(7000twist) 3500(7000twist) 3000(6000twist) 2000(4000twist)
Power 3.7KW 5.5KW 7.5KW 11KW
Tension control method Touch screen +PLC+ magnetic powder clutch, it may ensure the constant tension from empty bobbin to full bobbin
Magnetic powder clutch 0.3kgf 0.6kgf 1.2kgf 5kgf
Protection Machine will automatically brake when wire inside and outside is broken, the machine will automatically stop when the preset length is arrived.
Traversing method Rolling ring drive units, winding pitch and breadth are adjustable
Dimension(mm) 2400L*1750W*1100H 2400L*1750W*1100H 2800L*2250w*1500H 3500L*2850W*1800H

Other Information

FOB SHANGHAI
Payment

TT, L/C
Delivery

FOB Shanghai/Ningbo
Origin

China
Minimum Order

1 piece
